Woven polypropylene fabric, also known as polypropylene geotextile fabric, is woven and blended by two rows of parallel virgin polypropylene yarns (or tape yarn) into planar, permeable textile patters with various thickness and compactness for different applications. BPM polypropylene woven geotextile is relatively light in weight, high grab strength, excellent puncture resistance, good stabilization, high ultraviolet ray resistance, high elongation, excellent stability and high tensile strength to allow for soil separation, maximum slope support, stabilization and erosion control, etc. The woven polypropylene fabric is widely used in in such civil environmental engineering and construction projects as roads, pavements, railroads, structures and water conservancy project, etc.
Functions of PP Geotextile Fabric
(1) Filtration: The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
(2) Separation: The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the grounds, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the grounds or other buildings.
(3) Adding muscle: The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
(4) Protection: It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
High density, high strength woven polypropylene fabric has been more and more widely used in the foreign construction industry in recent years. In the past one or two years, they have also begun to be initially used in China, commonly known as geotextile fabric, we call them construction fabric. The geotextile polypropylene fabric has the advantages of softness, toughness, light weight, wear resistance, high strength, good elasticity, corrosion resistance, aging resistance, and no insects. The polypropylene geotextile fabric can be used in construction to play its drainage, filtration, isolation, reinforcement, seepage prevention, load distribution, settlement prevention and other functions according to design requirements.
Woven polypropylene fabric has long term corrosion resistance in the soil and water with different PH. It has excellent microbiological degradation resistance, because this material is light and soft, so it is convenient to transport and install.
BPM Canada customer sent inquiry on google website. We learned the customer needed 160gsm PP woven geotextile through discussion. BPM gave him the FOB price based on 50% virgin material mixed 50% recycled material and 100% virgin material together with SGS certificate and technical data. BPM sent 160gsm samples in two days, we discussed again after received samples, and learned Canada customer usually purchase 160gsm 100% virgin material PP woven geotextile for construction. The customer requested packing and paper tube size, BPM recalculated loading quantity. About two weeks, we negotiated the details and price, we got one 40HQ container quantity order. Customer satisfied with our products quality and BPM service after receiving the first order, then ordered another one 40HQ container quantity soon.
Specifications of Polypropylene Fabric for Construction Project in Canada
- Specification – 160gsm
- Total Quantity- 200000 Square meters
- Each Roll Size- 2.52’*252’
- Standard- 100% Virgin Material

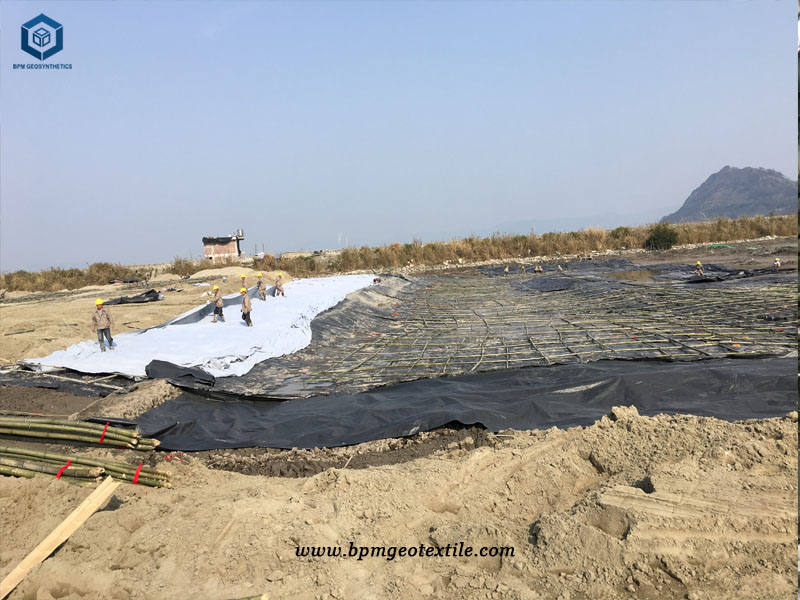

Installation Guide
- Before construction, the roadbed should be integrated and cleaned, and the surface should not have sharp corners. Do not let stones, a large amount of dust or moisture, etc., which may damage the woven cloth, block the drain or filter, or may cause difficulties for the subsequent connection, enter the woven cloth or the woven cloth.
- The plastic woven fabrics are better to be laid up mechanically, or laid manually. When laying, fix one end with a fixer, tighten it with machinery or manpower, and lay it straight and close to the road. The fixer includes a fixed nail and a fixed iron sheet. The fixing nails should be cement nails or shot nails. The nail length is 8-10cm and the iron sheet can be fixed with iron sheet with a thickness of 1mm and a width of 3mm.
- Use industrial sewing machine to sew, and the sewing method adopts “Ding sewing” and “Overlock sewing”. The suture thread must be made of the same or surpassed material as the woven cloth, and there should be obvious color difference between the suture thread and the woven cloth for easy inspection.
- After installation, visually inspect the surface of all plastic woven fabrics to identify all damaged landlords, mark and repair them, and make sure that there is no foreign matter that can cause damage to the paving surface, such as broken needles. Pay special attention to stitching during installation to ensure that no gravel in the soil or gravel covering layer enters the middle of the woven fabric.
- The connection of plastic woven fabrics must follow the following regulations: Under normal circumstances, there can be no horizontal connection on the slope surface (the connection must be along the contour of the slope surface and not intersect with it), except for the repaired place.
About BPM
BPM manufactures and supplies many types of effective and states of the art geotextile, geomembrane, and other geosynthetics to over 36 countries. BPM geosynthetic products are widely used across a variety of industries including waste containment, water containment, aquaculture, industrial project, energy project and mining projects, etc. BPM main customers are from Australia, France, Sweden, UK, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, etc.
BPM is not only manufacturing best quality geosynthetic products but also providing professional design and installation service. OEM, ODM, custom development and fabrication are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.
