Geotextile 180g m² variant, play a pivotal role in modern civil engineering and environmental projects, offering an innovative solution for soil stabilization, erosion control, and filtration. Among the notable manufacturers in this field is BPM Geosynthetics, a company renowned for its high-quality geosynthetic products tailored to meet diverse engineering needs. The Geotextiles 180g m2 stands out due to its optimal weight-to-performance ratio, making it a preferred choice for various applications ranging from road construction and landfill liners to landscaping and drainage systems. Its non-woven structure ensures excellent water permeability while providing sufficient tensile strength to withstand harsh environmental conditions. As we delve deeper into the specifics of this geotextile and explore its multifaceted applications, the contribution of industry leaders like BPM Geotextile becomes increasingly evident, showcasing how advanced materials are reshaping sustainable construction practices worldwide.

1. What ls Geotextile 180g m² ?

Geotextile 180g/m2 is a type of non-woven geosynthetic fabric designed for civil engineering and environmental applications. Weighing 180 grams per square meter, this material is known for its optimal combination of strength and durability. The non-woven structure provides it with excellent water permeability while maintaining high tensile strength, making it suitable for various construction and environmental projects. It is commonly used in road construction, erosion control, drainage systems, and as a separation layer in landfills. Its ability to withstand harsh environmental conditions and resist UV rays, chemicals, and biological degradation makes it a reliable choice for long-term use.

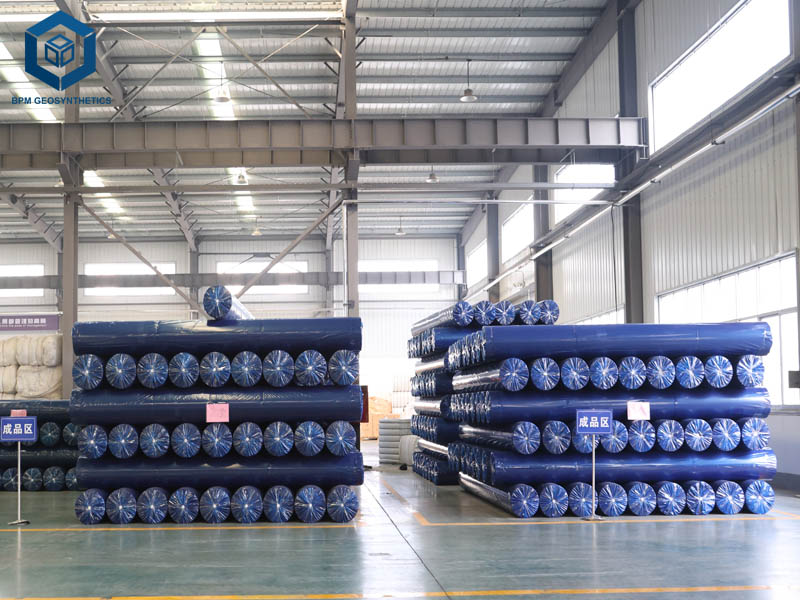

4oz Non Woven Geotextile 180g m² Geotextile

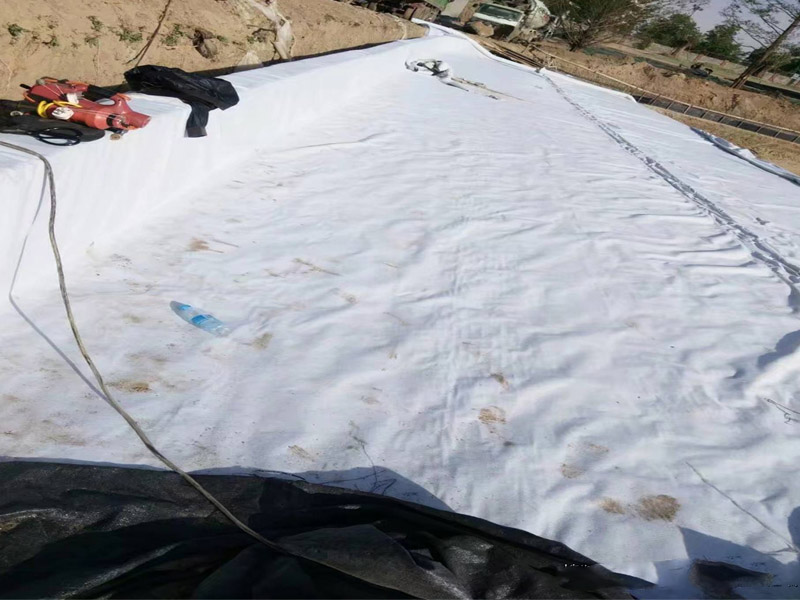

Geotech Drainage Fabric 8 oz Nonwoven Geotextile for Erosion Control

2. Specifications of Geotextile 180g m²

  • Width:1m-6m
  • Color:White,Black,Blue,Green
  • Material:PET PP

2.1 Specifications of Staple Fiber Needled Punched Geotextile Fabric

Test Units BTS10 BTS15 BTS20 BTS25 BTS30 BTS35 BTS40 BTS45 BTS50 BTS60 BTS80 BTS90 BTS120
Mechanical Properties Weight   g/m2 100 150 200 250 300 350 400 450 500 600 800 900 1200
Weight Variation % -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6 -6 -6
Thickness   mm 0.9 1.3 1.7 2.1 2.4 2.7 3 3.3 3.6 4.1 5 5.5 6.9
Width Variation % -0.5
Break Strength
(MD and XMD)		 kN/m 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 29 38
Break Elongation % 25 ~ 100
CBR Burst Strength   ≥ kN 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4 4.5 6.2
Tear Strength  ≥
(MD and XMD)		 kN 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 0.64 0.82
              MD=Machine Direction Strength       CD=Cross Machine Direction Strength
Hydraulic
Properties		 Sieve Size O90  mm 0.07 ~ 0.20
Coefficient of
Permeability 		cm/s (1.0-9.9)× (10-1 ~ 10-3)

2.2 Specifications of Filament Needled Punched Geotextile Fabric

Specifications Test Method Unit BTF100 BTF150 BTF200 BTF250 BTF300 BTF350 BTF400 BTF450 BTF500 BTF600
Index Properties
Ultimate Tensile Strength, MD ASTM D4595 kN/m 7 11 14 17 19 24 27 30 37 41
Ultimate Tensile Strength, TD ASTM D4595 kN/m 6 10 12 15 17 21 25 28 34 38
Tensile Elongation ASTM D4595 % 45 45 50 50 50 60 60 60 60 60
Grab Tensile Strength, MD ASTM D4632 N 400 600 850 1000 1250 1450 1700 1900 2100 2500
Grab Tensile Strength, TD ASTM D4632 N 350 550 700 900 1100 1250 1450 1600 1800 2150
Grab Elongation ASTM D4632 % 45 45 50 50 50 60 60 60 60 60
Trapezoid Tear Strength, MD ASTM D4533 N 160 300 350 430 490 540 630 710 770 920
Trapezoid Tear Strength, TD ASTM D4533 N 140 270 330 400 450 510 610 690 750 900
CBR Puncture Strength ASTM D6241 N 1000 1800 2300 2700 3200 3600 4400 4800 5800 6900
Apparent Opening Size O90 ASTM D4751 mm 0.12 0.11 0.11 0.10 0.09 0.09 0.08 0.08 0.08 0.08
Water Flow Q100 ASTM D4491 L/m2/s 250 235 220 200 185 165 125 110 90 80
Weight ASTM D5261 g/m2 100 150 200 250 300 350 400 450 500 600
Thickness ASTM D5199 mm 1.2 1.8 2.3 2.9 3.2 3.6 3.9 4.2 4.4 4.8
Roll Width – m 6 6 6 6 6 6 6 6 6 6
Roll Length – m 300 200 150 100 100 100 80 80 50 50

3. What Are The Characteristics Of Geotextile 180g m² ?

Geotextile 180g/m² is a type of geotextile fabric that is commonly used in various civil engineering and environmental applications. Here are some characteristics of this specific type of geotextile:

3.1 Geotextile 180g m² – Material Composition

  • Polypropylene (PP): Often made from polypropylene fibers, which provide good strength and durability.
  • Non-woven: Typically non-woven, meaning it is not knitted or woven but rather bonded through processes like needle punching or heat bonding.

3.2 Geotextile 180g m² – Physical Properties

  • Weight: As the name suggests, it has a weight of 180 grams per square meter (g/m²).
  • Thickness: Generally, it has a thickness ranging from 1.5 to 2.5 millimeters.
  • Porosity: Highly porous, allowing for effective drainage and water passage while retaining soil particles.

3.3 Geotextile 180g m² – Mechanical Properties

  • Tensile Strength: Offers moderate tensile strength, suitable for reinforcing soil and providing erosion control.
  • Elongation at Break: Good elongation properties, which allow it to stretch without breaking under load.
  • Permeability: High permeability, making it ideal for drainage applications.

4. What Are The Applications Of Geotextile 180g m2?

Geotextile 180g/m² has a variety of applications in large-scale industrial projects due to its physical and mechanical properties. Here are some common uses:

4.1 Geotextile 180g m² – Erosion Control

  • Slope Protection: Used on slopes to prevent soil erosion caused by water runoff or wind.
  • Streambank Stabilization: Helps stabilize streambanks and riverbanks to prevent erosion and maintain the natural course of water bodies.

4.2 Geotextile 180g m² – Drainage Systems

  • Subsurface Drainage: Acts as a filter layer in subsurface drainage systems to separate soil particles from water, ensuring effective drainage while preventing clogging.
  • Roadways and Highways: Placed under roads and highways to facilitate drainage and reduce the risk of water damage to the infrastructure.

4.3 Geotextile 180g m² – Reinforcement of Soil Structures

  • Embankments and Slopes: Used to reinforce embankments and slopes, providing additional stability and preventing collapse.
  • Retaining Walls: Enhances the structural integrity of retaining walls by adding reinforcement and preventing soil movement.

4.4 Environmental Applications

  • Landfills: Used in landfill liners and caps to prevent leachate contamination and control gas emissions.
  • Pollution Control: Acts as a barrier in pollution control projects to prevent the spread of contaminants in soil and water.

4.5 Construction Projects

  • Foundation Reinforcement: Used in foundation construction to improve load distribution and reduce settlement.
  • Railway Tracks: Provides a stable base for railway tracks, enhancing track stability and longevity.

4.6 Infrastructure Projects

  • Dam Construction: Used in the construction of dams and levees to provide reinforcement and prevent seepage.
  • Coastal Protection: Applies to coastal areas to protect against wave action and erosion, preserving shorelines and infrastructure.

These applications highlight the versatility and importance of geotextile 180g/m² in various large-scale industrial projects, contributing to the durability, safety, and environmental sustainability of the infrastructure.

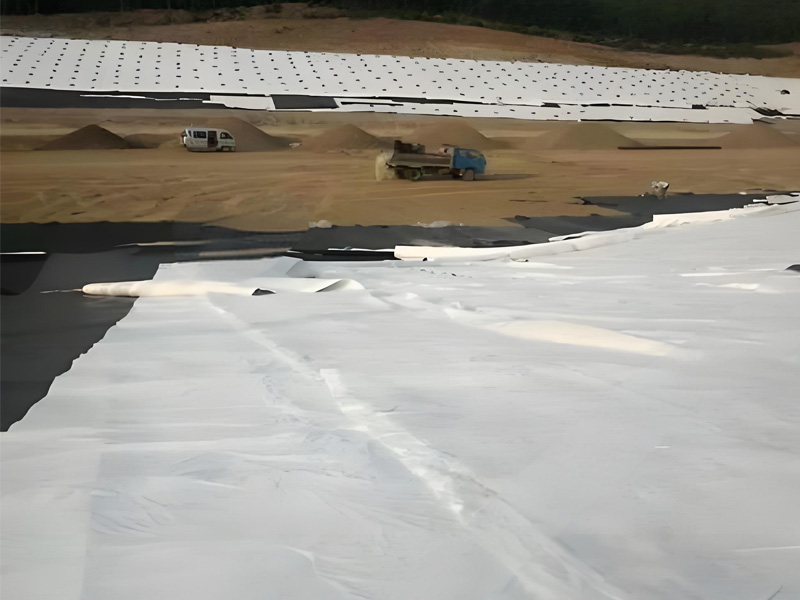

Nonwoven Geotextile 180g m² Price Filter Fabric for Landfill Project
Soil Stabilization Polypropylene Geotextile 180g m² for Landscape Drain

5. Does Non woven Geotextile FabricReally Work?

5.1 Application Area

  • Improve the slope stability and soil reinforcement.
  • Retaining and reinforcement wall backfill.
  • Strengthen weak road and fix the cracks on the road.
  • Isolation layer of artificial backfill soil stone foundation and different tundra.
  • Filtration layer of drainage pipe or gravel.
  • Vertical or horizontal drainage;
  • Bury in soil to release air pressure.
  • Reinforce the weak foundation of road, railway, embankment and airport, etc.

5.2 Construction methods

  • Layout and measurement: Determine the laying range and position of geotextile according to engineering needs. Use measuring tools to measure the length and width of the laying area.
  • Laying geotextile: Slowly unfold the geotextile onto the laying area and ensure that it is in close contact with the ground. Avoid excessive stretching or damaging the geotextile.
  • Fixing geotextile: Use nails or other suitable fixtures to fix the geotextile to the ground. Ensure that the connection between the fixed object and the geotextile is firm and reliable to prevent movement and looseness.
  • Drainage management: Install drainage facilities (such as drainage channels or pipes) at the installation site as needed to ensure the smooth flow of water under the geotextile.
  • Regular inspection: Regularly check the condition of the geotextile to ensure its normal operation. If necessary, repair or replace the damaged parts.

6. Summary

Based on this article’s words, you could know What ls Geotextile 180g m2 And lts Applications. The quality is basic and the service is the safeguard.

So when buying the Right Geotextile 180g m2, hope this article can help you well to do the Right Geotextile 180g m2 for sale. If you have any related projects or Right Geotextile 180g m2, do not hesitate to ask a price here. Thanks for reading.
