How To Choose Best Geotextile Fabric For Gravel Driveway?

Choosing the best geotextile fabric for gravel driveway is crucial for ensuring its durability, functionality, and aesthetic appeal. One of the top choices in the market is BPM Geotextile, renowned for its high-quality materials and performance. This article will guide you through the key factors to consider when selecting the ideal geotextile fabric for your gravel driveway project, with a special focus on why BPM Geotextile stands out as an excellent option.

1. What Is Geotextile Fabric For Gravel Driveway?

Geotextile fabric for gravel driveway is a type of synthetic material used in civil engineering and landscaping to stabilize soil, control erosion, and separate layers within a pavement structure. It is typically made from materials such as polypropylene, polyester, or other polymers that are resistant to UV light, moisture, and various chemicals.

When used in gravel driveways, geotextile fabric serves several important functions:

• Separation: It prevents the mixing of different materials in the driveway structure. For instance, it separates the gravel layer from the underlying soil, preventing the finer particles from migrating into the gravel and causing premature failure.
• Filtration: The fabric allows water to pass through while retaining soil particles, reducing the risk of soil erosion and preserving the stability of the gravel layer.
• Reinforcement: By providing an additional layer of support, geotextile fabric helps distribute loads more evenly across the surface, which can extend the lifespan of the gravel driveway by minimizing rutting and deformation.
• Protection: It acts as a barrier against weed growth and root penetration from below, helping to maintain a clean and stable surface.

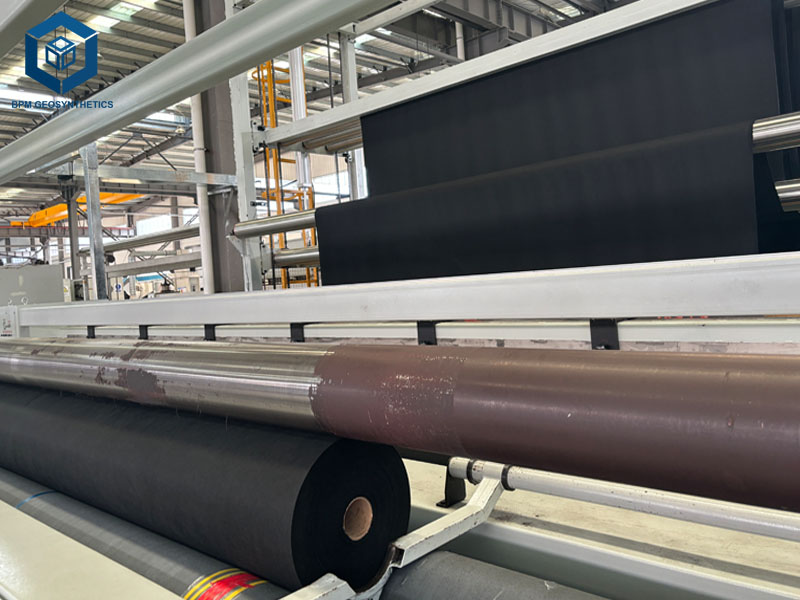

2. What Is The Production Process Of Best Geotextile Fabric For Gravel Driveway?

2.1 Material Selection

• Polymer Selection: High-quality polypropylene (PP) or polyester are chosen based on their durability, UV resistance, and chemical stability.
• Additives: UV stabilizers, anti-oxidants, and other additives may be included to enhance the performance and longevity of the geotextile fabric.

2.2 Melting and Extrusion

• Melting: The selected polymer pellets are melted down in an extruder to form a continuous molten stream.
• Extrusion: The molten polymer is then extruded through a spinneret to create continuous filaments or fibers.

2.3 Formation of Nonwoven Fabric

• Needle Punching: For nonwoven geotextiles, the fibers are laid randomly and then mechanically needled together to form a cohesive fabric structure. This process ensures high permeability and good mechanical strength.
• Thermal Bonding: Alternatively, heat can be applied to bond the fibers at their intersection points, providing additional stability and strength.

2.4 Weaving or Knitting (for Woven or Knitted Geotextiles)

• Weaving: If a woven geotextile is being produced, the extruded fibers are interlaced at right angles to form a stable, grid-like structure.
• Knitting: For knitted geotextiles, the fibers are looped together in a pattern that allows for flexibility while maintaining strength.

2.5 Quality Control and Testing

• Inspection: The finished geotextile fabric undergoes rigorous quality control checks to ensure it meets industry standards for strength, permeability, and other critical properties.
• Testing: Samples are tested in simulated conditions to assess their performance under various stresses and environmental factors.

2.6 Rolling and Packaging

• Rolling: The final product is rolled into large rolls for easy handling and transportation.
• Packaging: The rolls are then packaged securely to protect them during shipping and storage.

3. How To Choose Best Geotextile Fabric For Gravel Driveway？

Choosing the best geotextile fabric for a gravel driveway, especially for industrial projects, requires careful consideration of several factors to ensure durability, cost-effectiveness, and optimal performance. Here’s a comprehensive guide to help you make an informed decision:

3.1 Best Geotextile Fabric For Gravel Driveway – Determine Project Requirements

• Load Distribution: Industrial projects often involve heavy machinery and vehicles. Ensure the geotextile can handle significant weight without deforming.
• Durability: The fabric must withstand frequent use and harsh conditions. Look for high tensile strength and tear resistance.
• Permeability: Adequate water drainage is crucial to prevent waterlogging and soil erosion. Choose a fabric with appropriate permeability.
• UV Resistance: Exposure to sunlight can degrade materials over time. UV-resistant geotextiles are essential for long-term stability.
• Chemical Resistance: Industrial sites might expose the fabric to various chemicals. Select a geotextile that resists potential chemical exposure.

3.2 Best Geotextile Fabric For Gravel Driveway – Material Selection

• Polypropylene (PP): Commonly used for its excellent balance of cost, strength, and UV resistance. Suitable for most industrial applications.
• Polyester: Offers higher strength and better resistance to stretching but at a higher cost. Ideal for high-stress areas or where maximum durability is required.
• Blended Materials: Some geotextiles combine polypropylene and polyester for enhanced properties. Consider these if your project demands both high strength and cost-effectiveness.

3.3 Best Geotextile Fabric For Gravel Driveway – Fabric Type

• Nonwoven Geotextiles: These are flexible, easy to install, and provide good filtration. Ideal for separating layers and preventing soil intrusion.
• Woven Geotextiles: More stable and suitable for areas requiring higher mechanical strength. They offer better load distribution but are less permeable than nonwovens.
• Knitted Geotextiles: Provide flexibility and strength, suitable for applications requiring some elasticity.

3.4 Best Geotextile Fabric For Gravel Driveway – Thickness and Weight

• Heavier Fabrics: Generally more durable and suitable for high-traffic areas. However, they may be more challenging to install.
• Lighter Fabrics: Easier to handle and install but may not withstand heavy loads as well.

3.5 Best Geotextile Fabric For Gravel Driveway – Manufacturer and Quality Assurance

• Reputable Brands: Choose products from well-known manufacturers like BPM Geotextile, which have a proven track record of quality and reliability.
• Certifications: Look for certifications such as ISO standards, which indicate adherence to international quality management systems.
• Warranty: Check if the manufacturer offers a warranty on their products, reflecting confidence in their durability and performance.

3.6 Best Geotextile Fabric For Gravel Driveway – Installation Considerations

• Ease of Installation: Ensure the chosen geotextile is user-friendly for installation. Nonwoven fabrics are generally easier to lay out and conform to irregular surfaces.
• Overlap and Seams: Proper overlapping and seaming techniques are crucial to prevent gaps and ensure continuous protection. Follow manufacturer guidelines for best practices.

3.7 Best Geotextile Fabric For Gravel Driveway – Cost Analysis

• Initial Cost vs. Long-Term Savings: While higher-quality geotextiles may have a higher upfront cost, they often result in lower maintenance and replacement costs over time.
• Bulk Purchasing: For large industrial projects, buying in bulk can reduce costs. Negotiate with suppliers for discounts on large orders.

3.8 Best Geotextile Fabric For Gravel Driveway – Environmental Impact

• Sustainability: Consider the environmental impact of the geotextile material. Some manufacturers offer eco-friendly options made from recycled materials.
• Lifecycle Assessment: Evaluate the entire lifecycle of the product, from production to disposal, to minimize environmental footprint.

4. What Is The Construction Process Of Best Geotextile Fabric For Gravel Driveway?

The construction process of the best geotextile fabric for a gravel driveway, especially when focusing on industrial projects, involves several meticulous steps. Here’s a detailed breakdown:

4.1 Site Preparation

• Surveying and Planning: Conduct a thorough site survey to understand the soil composition, drainage patterns, and any potential obstacles. Plan the layout of the geotextile and gravel driveway.
• Clearing and Excavation: Remove any vegetation, debris, or existing structures from the area. Excavate the soil to the required depth, ensuring a level base for the driveway.

4.2 Base Preparation

• Subgrade Compaction: Compact the subgrade soil using a roller or plate compactor to create a stable foundation. This step is crucial to prevent future settling or deformation.
• Gravel Base Layer: Spread a layer of coarse gravel (typically 6 inches) over the compacted subgrade. This layer provides additional stability and aids in drainage.

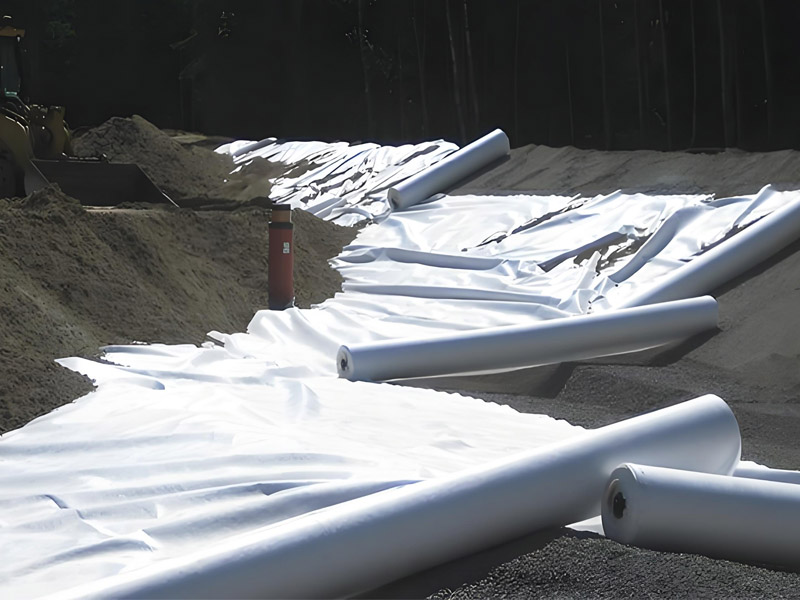

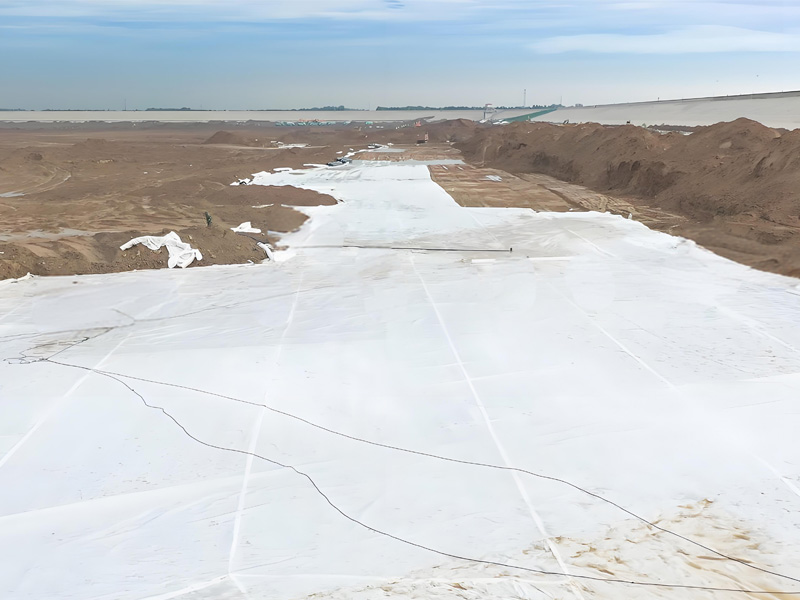

4.3 Geotextile Fabric Placement

• Unrolling the Geotextile: Lay out the geotextile fabric over the gravel base layer. Ensure it covers the entire area with sufficient overlap at the seams (usually 6-12 inches).
• Alignment and Positioning: Align the geotextile so that it runs parallel to the direction of traffic for optimal load distribution. Smooth out any wrinkles or folds to ensure even contact with the gravel base.

4.4 Seaming and Overlapping

• Overlap Seams: For nonwoven geotextiles, overlap the edges by the recommended amount (usually 6-12 inches). For woven or knitted geotextiles, use stitching or specialized fasteners to join the seams securely.
• Securing the Edges: Secure the edges of the geotextile to prevent shifting during installation. This can be done using stakes, pins, or weights.

4.5 Top Gravel Layer

• Spreading Gravel: Apply a top layer of gravel (typically 2-4 inches) over the geotextile fabric. Use a rake or mechanical spreader to distribute the gravel evenly.
• Compaction: Compact the gravel layer using a roller or plate compactor. This step ensures that the gravel interlocks and forms a stable surface.

4.6 Final Touches

• Surface Finishing: Add a finer layer of gravel or stone chips on top for a smooth driving surface. This layer also helps with drainage and reduces dust.
• Edge Treatment: Install edging materials along the sides of the driveway to prevent gravel from spreading and to maintain a neat appearance.

4.7 Quality Control and Inspection

• Visual Inspection: Conduct a thorough visual inspection to check for any visible defects, proper alignment, and adequate compaction.
• Load Testing: If possible, perform load testing with heavy vehicles to ensure the driveway can withstand the expected traffic.

4.8 Maintenance and Longevity

• Regular Inspections: Periodically inspect the geotextile and gravel layers for signs of wear, displacement, or damage.
• Repairs: Address any issues promptly by adding more gravel, compacting loose areas, or repairing damaged sections of the geotextile.

5. Summary

When it comes to selecting the best geotextile fabric for a gravel driveway, especially for industrial projects, BPM Geotextile stands out as a reliable choice. Their high-quality nonwoven and woven geotextiles offer exceptional durability, UV resistance, and performance that meets the demands of rigorous applications. Whether you are working on road construction, railway projects, or water conservancy engineering, BPM Geotextile provides dependable solutions that ensure longevity and stability for your gravel driveway.
