Filament Ground Fabric for Driveways Construction Project in Thailand

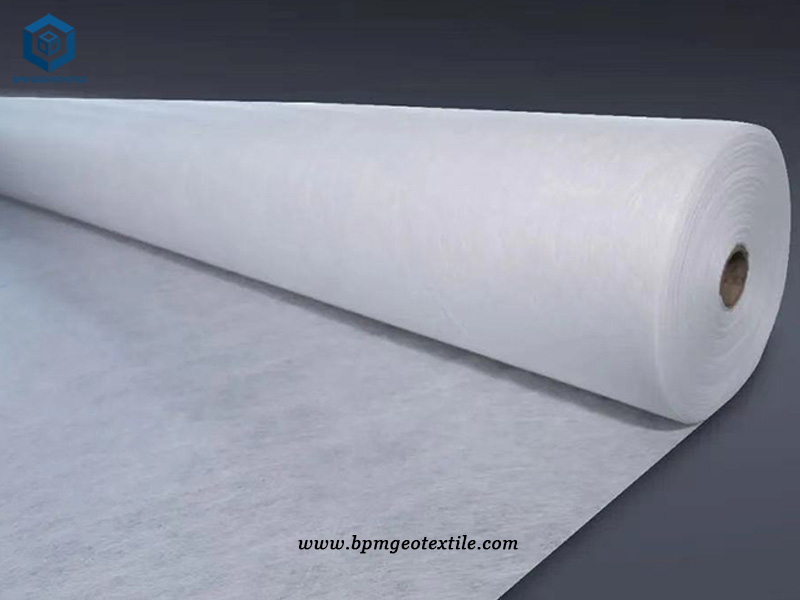

The continuous filament ground fabric for driveways has excellent tensile strength,  high elongation and perfect uniformity to ensure superior performance, good damage resistance, and excellent filtration properties.  The optimized manufacturing process combined with the finest quality virgin material and refined additive stabilizers, continuous filament non woven ground fabric for driveways has good resistance to aging, acid and alkali corrosion, moisture and chemical attack, etc, it also has three-dimensional uniformly distributed physical properties in all directions, so it is the ideal geotechnical product for separation and protection applications.

The continuous filament ground fabric for driveways can be widely used in railways, highways, stadiums, dams, water conservancy construction, tunnels, coastal tidal flats, reclamation, environmental protection and other projects. Polypropylene filament geotextile does not contain chemical additives and is an environmentally friendly building material. The construction is more secure, it is helpful to environmental protection, and it can solve the basic problems in engineering construction more economically, effectively and permanently.

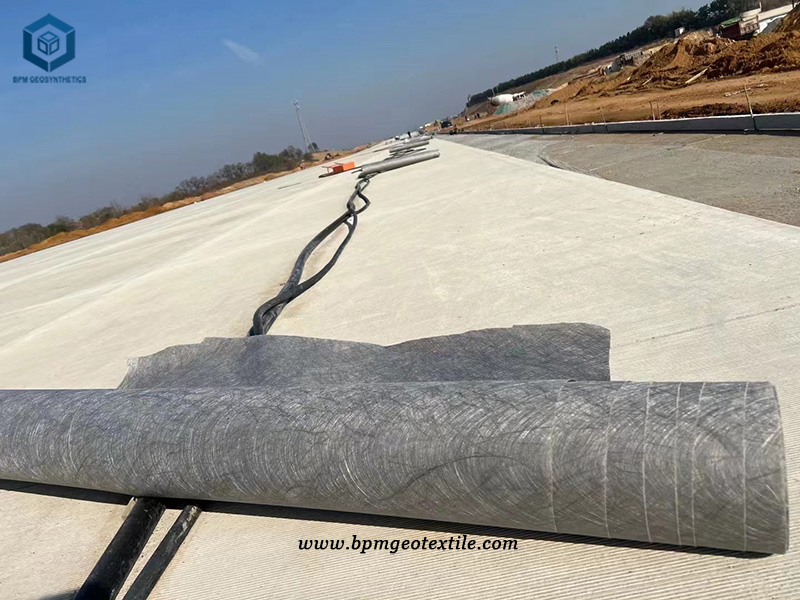

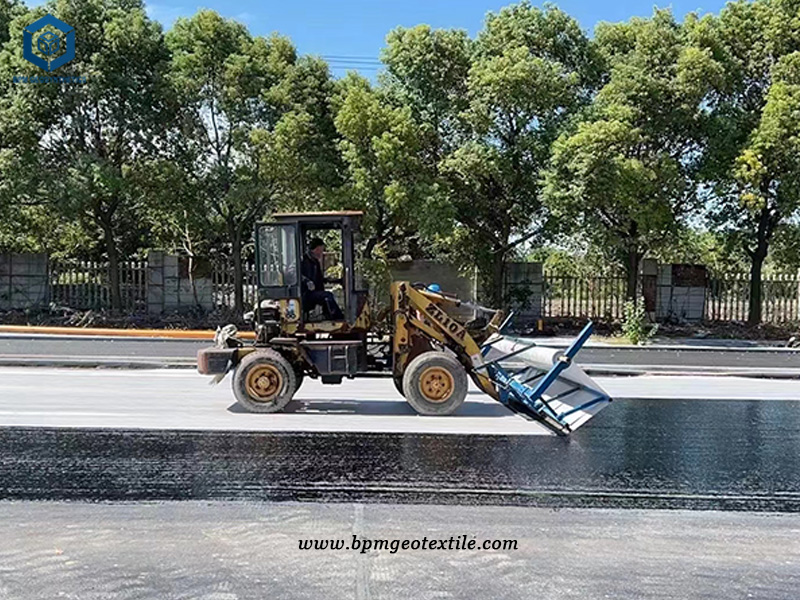

Case Study

• Location: Thailand
• Product: 200g Polypropylene Ground Fabric for Driveways
• Application: Road Construction

Issue

In the process of driveway construction, some driveways are located in low-lying hills and valleys, and their foundations are soaked and eroded by groundwater, which will damage the strength, rigidity and stability of the expressway, which will affect the expressway. The road surface makes the expressway pavement cracks due to uneven force.

Customers from Thailand found us and they needed a high-strength pull to prevent cracks. After research by our technical team， We recommended 200g Polypropylene Spunbonded Filament ground fabric for driveways to our customers. This kind of geotextile has high strength, light weight and good tear resistance, and is widely used in road construction projects.

Solution

We have mailed different types of geotextiles to customers for reference, and finally the customer decided to use 200g polypropylene spunbond needle punched filament geotextiles. Although the price of this geotextile is relatively high, customers feel that the price is only one aspect, and the quality is also very important. This is consistent with our company’s philosophy, which has been striving to provide customers with high-quality geotechnical materials. Finally, the customer determined 50,000 square meters of geotextiles and 30,000 square meters of geogrids.

Summary

Polypropylene filament geotextiles can be widely adapted to various soil environments, especially in saline-alkali soil, cement, composite soil (lime, clay, fine sand), various tailings and other conditions with different degrees of acid-base environment. Effectively guarantee the quality and safety of the project and the service life of the project.

Polypropylene filament geotextile has excellent acid and alkali resistance, and it will not be affected in any way when it is used under the condition of PH value 2-13. Traditional polyester geotextiles are prone to irreversible hydrolysis under alkaline conditions or when there is a large amount of water, resulting in a decrease in material performance or even complete loss, while polypropylene geotextiles are fully suitable for acid-base environments and will not pollute the environment.

Specifications of Filament Ground Fabric for Driveways Construction Project in Thailand

• Unit Weight – 200gsm
• Total Quantity – 50,000 Square meters
• Each Roll Size – 5m*100m

Features:

1. Light weight. The density of polypropylene is 0.91g/cm3. Under the same strength, the same quality polypropylene geotextile has a larger coverage area.
2. Good chemical stability. Polypropylene geotextile has excellent acid and alkali resistance, especially alkali resistance.
3. High mechanical properties. Polypropylene geotextile is made of polypropylene continuous filaments consolidated. The tensile properties of the cloth surface are mainly due to the fracture of fibers, and the mechanical indicators such as strength and elongation are better than short-fiber geotextiles.
4. Good drainage performance. Polypropylene is extremely hydrophobic but has good water conductivity.
5. Convenient construction. The polypropylene geotextile has a low needle-punched density, the cloth surface is soft and not stiff, and fits the applicable surface better, and the construction operation is simple and easy

Filament Non Woven Ground Fabric for Driveways Applications

Separation. To separate building materials with different physical properties such as soil and sand, sand and gravel, soil and concrete, etc. Keep the two or more materials from losing or mixing, and maintain the overall structure and function of the material, such as the effective isolation between the roadbed and the foundation, the foundation and the embankment, the geomembrane and the sand draining layer.

Soft foundation reinforcement. To enhance the tensile strength and anti deformation ability of soil can enhance the stability of building structures such as trash impurities, base soil or stone layer, airport railway, playground, runway, landfill and so on, so as to improve the quality of soil.

Filter. When the water flows into the coarse soil layer from the fine soil layer, the geotextile can make the water flow through the good permeability and permeability of geotextiles, and effectively interception the soil particles, fine sand and small stones, so as to keep the stability of the soil and water engineering.

Drainage. installed in the geomembrane, the playground or the railway track bed.

Protection. effectively diffuse, transfer or decompose the stress of civil engineering so as to prevent soil from being damaged by external force.

Our Polypropylene filament groud fabrcis are mechanically bonded continuous filament nonwovens made from 100% UV stabilized polypropylene. They have been used for decades as separation, protection and filtration elements in a large number of applications, adding years to the life of any roadway, railroad, landfill or civil / environmental engineering project. They are robust and long lasting. The manufacturing method (a continuous process with endless filaments) guarantees the use of high-quality raw materials.

BPM non woven geotextiles are resistant to all chemical and biological media usually occuring in soils and construction materials. It cannot be dissolved by water and therefore is harmless to ground water. They are manufactured with UV-stabilizer providing extended resistance to direct sunlight.  BPM Filament geotextile is the ideal separation and filter geotextile for civil engineering, it stabilizes base courses over low bearing capacity subgrades, provides excellent tensile strength and elongation properties,  maintains the function of drainage systems, offers high permeability to water and retains finest soil particles and provides high long-term resistance and robustness.

About BPM

BPM manufactures and wholesales many types of effective and states of the art geotextile, geomembrane, and other geosynthetics to over 36 countries. BPM geosynthetic products are widely used across a variety of industries including waste containment, water containment, aquaculture, industrial project, energy project and mining projects, etc. BPM main customers are from Australia, France, Sweden, UK, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, etc.

BPM is not only manufacturing best quality geosynthetic products but also providing professional design and installation service. OEM, ODM, custom development and fabrication are also available. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.
