Filament driveway liner fabric, also known as geotextile road fabric, is made by the method of forming and consolidating polyester filaments. Its fibers are arranged into a three-dimensional structure. The filament driveway liner fabric is a new type of building material for geotechnical and civil engineering applications. In addition to having good stretch, puncture resistance and other effects, the geotextile road fabric has good vertical and horizontal drainage performance and high acid and alkali resistance, aging resistance and other effects. The filament geotextile also has a wide pore size range, tortuous void distribution, good permeability and filtration performance. Filament geotextile road fabric is widely used for separation, filtration, drainage, protection functions in civil engineering projects.
Case Study
Location: Thailand
Products: Filament Geotextile Road Fabric
Application: Road Construction Project
Issue
The customer is a well-known local engineering purchaser. Because BPM has had experience in cooperation with the customer before, the customer will send the information to us after receiving the notice of the bidding project. After we receive the bidding materials, we will send the driveway liner fabric inspection TRI certificate, factory qualification certificate and successful bidding cases in the past to the customer as soon as possible. Because Thailand has a hot climate, high temperature and drought all year round. Therefore, the Thai government requires that the filament geotextile driveway liner fabric provided by BPM must have a long service life, be resistant to sun protection and play a role in strengthening the foundation.
Solution
BPM provided customers with PP staple fiber geotextile and PET Filament geotextile. At the same time, we sent two kinds of geotextile indicators, tensile test reports, production videos, and analyzed the two kinds of geotextiles from the tensile force, elongation, tear resistance, CBR and other technical indicators of the two geotextiles. BPM also set up a technical department to make appointments with customers for video conferences, video factory inspections and real-time testing of geotechnical indicators in the laboratory. Let customers intuitively feel which is better.
Product Comparison
The comparison results showed that under the same weight, the filament geotextile roll is better than the short fiber geotextile in all aspects, and the filament index data is 40% higher than the short fiber index. In terms of price, filament yarn is also cheaper than staple fiber. After calculating the price, we provide customers with a comparison of the packaging quantities of the two geotextiles. Due to the hot rolling process of the filament geotextile roll, the thickness of the geotextile will be thinner and the loading capacity will be more. For export, filament geotextile rolls have great advantages. After the customer received our samples and personally did the sample quality inspection, the customer accepted the more cost-effective PET Filament geotextile driveway liner fabric.
Benefits
1) Good temperature resistance
The temperature of the asphalt mixture during hot paving is about 150℃, and the temperature of the modified asphalt is higher. The PET Filament geotextile road fabric is required to not only not melt or soften at this temperature, but also to maintain normal operation. It is required to be able to withstand temperatures above 170°C.
2) Good asphalt adsorption

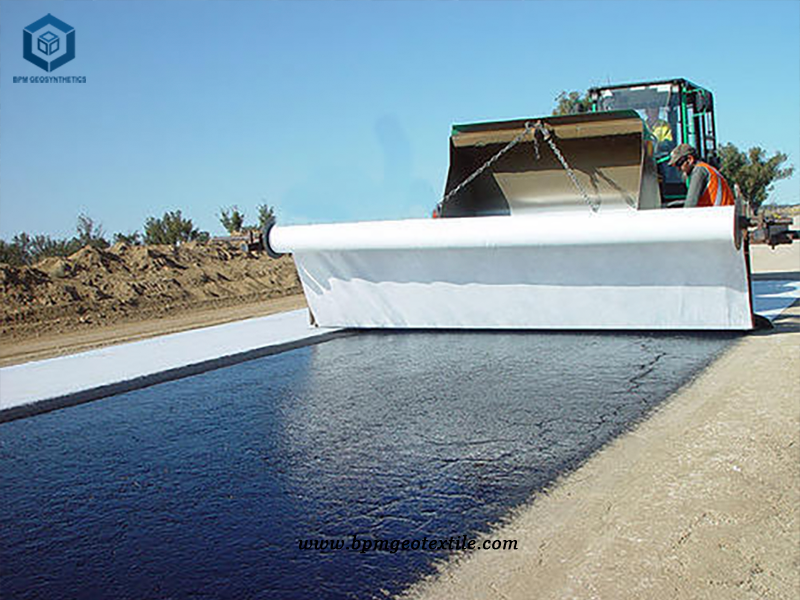

First, spray the permeable layer of asphalt evenly, and then spread the PET filament geotextile road fabric. The PET filament driveway liner fabric should be able to absorb the asphalt and reach saturation. The filament geotextile road fabric is required to have good adsorption capacity.
3) Good uniformity
PET filament driveway liner fabric is an anisotropic material. To ensure uniform strength, the two-way strength ratio should not be greater than 12. Generally, PET Filament geotextile should be used instead of woven geotextile.
4) Aging resistance
Filament geotextile road fabric is required to maintain normal working conditions within the service life of the pavement.
5) Water permeability
PET Filament geotextile road fabric also require good water permeability, which can be measured by the vertical permeability coefficient.
Summary
PET filament driveway liner fabric, also known as nonwoven geotextile road fabric.The PET filament geotextile road fabric s of isolation, filtration, drainage, reinforcement, protection and maintenance, etc.
1.Excellent permeability, filtration, protection Soil, played isolation, drainage filters, protective role;
2.Low cost, excellent price, simple construction, easy to use.
3.Reinforcement in retaining wall backfill.
4.Improve the stability of slope and reinforcement soil, avoid water and soil loss and soil frozen injure.

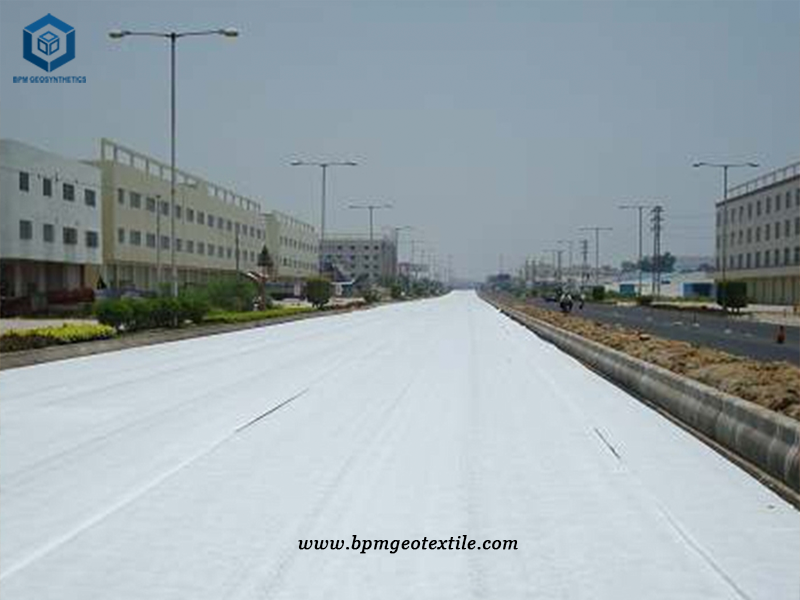

Specifications of Filament Driveway Liner Fabric for Road Construction Project in Thailand
- Total geotextile quantity – 30,000 square meters
- PET Filament Geotextile weight – 200gsm
- The size of each roll 6m * 150m
