Geotextile underlayment fabric is the kind of geotextile used for soil separation and drainage. The use of geotextile underlayment fabric in road construction is increasing and improving due to improvements in its engineering properties and fabrication techniques. BPM geotextile underlayment fabric is available in varying strengths and thicknesses to ensure appropriate material selection for your requirements. Geotextiles allow filtration or separation of granular layers in roads and rail applications. Non woven geotextile membrane is widely used to protect membranes in landfill applications, used in coastal defence applications and used in landscaping to protect surfaces and structures from weeds and root growth.
1.What Is Geotextile underlayment fabric?
Geotextile underlayment fabric, also known as geotextile underlay or geotextile underlayment, refers to a type of geosynthetic material specifically designed for use as a protective layer or cushioning material in various construction and civil engineering applications. It is typically placed between different layers of materials to provide separation, filtration, and reinforcement functions.
Geotextile underlayment fabric is manufactured from materials consisting of, at the minimum, the following as resin, carbon black, short-term processing stabilizers and long-term antioxidants. This composition of non woven geo fabric defines its superior properties and inherent deficiencies, and this has been the basis for the modification and progressive application of geotextile underlayment fabric.
2.What Are Applications of Geotextile Underlayment Fabric?
Geotextile underlayment fabric finds applications in various construction and civil engineering projects. Some common applications include:
2.1 Landscaping
Geotextile underlayment fabric is used in landscaping projects as a protective layer between the soil and artificial turf, gravel, or other ground cover. It helps prevent weed growth, stabilizes the soil, and improves drainage.
2.2 Road Construction

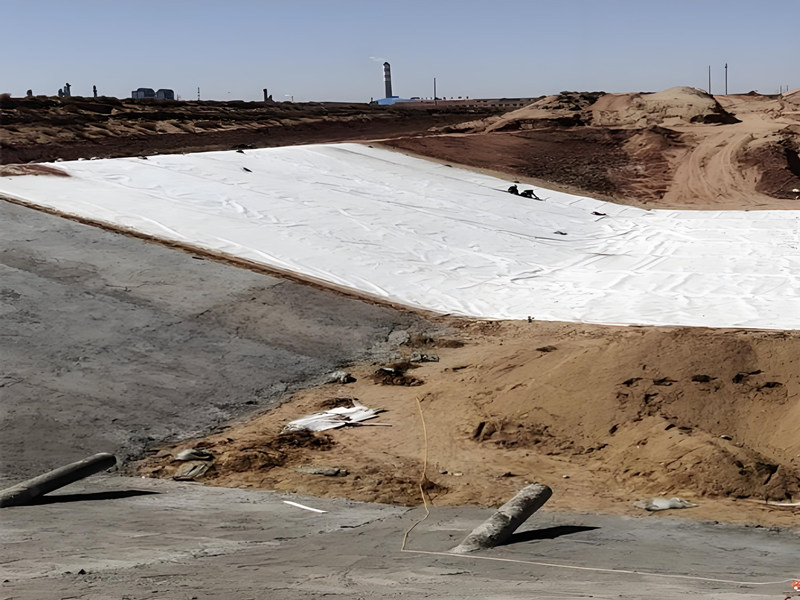

In road construction, geotextile underlayment fabric is placed between the subgrade soil and the overlying aggregate or pavement layers. It acts as a separation layer, preventing the mixing of different soil types, improving load distribution, and enhancing the overall stability of the road.
2.3 Retaining Walls
Geotextile underlayment fabric is commonly used in the construction of retaining walls. It is placed behind the wall structure to separate the backfill soil from the wall, preventing soil loss, promoting drainage, and enhancing the stability of the wall.
2.4 Drainage Systems
Geotextile underlayment fabric is used in various drainage systems to prevent the clogging of pipes or channels. It acts as a filter, allowing water to pass through while preventing the migration of fine soil particles, ensuring efficient drainage and preventing system failure.
2.5 Waterproofing
Geotextile underlayment fabric is utilized in waterproofing applications, such as beneath concrete slabs or in underground structures. It provides a protective layer, preventing the intrusion of water while allowing for water vapor transmission, thereby enhancing the durability and performance of the waterproofing system.
2.6 Foundation Protection
Geotextile underlayment fabric is often used as a protective layer in foundation applications. It acts as a cushioning barrier, reducing the risk of damage from mechanical or hydraulic forces and enhancing the long-term stability and integrity of the foundation.
3.Case Study of Geotextile Underlayment Fabric
Our Thailand customer wanted to purchase geotextile underlayment fabric for road construction project. The Thailand customer was satisfied with BPM geotextile underlayment fabric production process, raw materials and product quality. In addition, we recommended our geotextile installation guide and we quoted them very competitive price. Based on the recognition of our product quality, our customers have established a good cooperative relationship with us and signed order quickly.

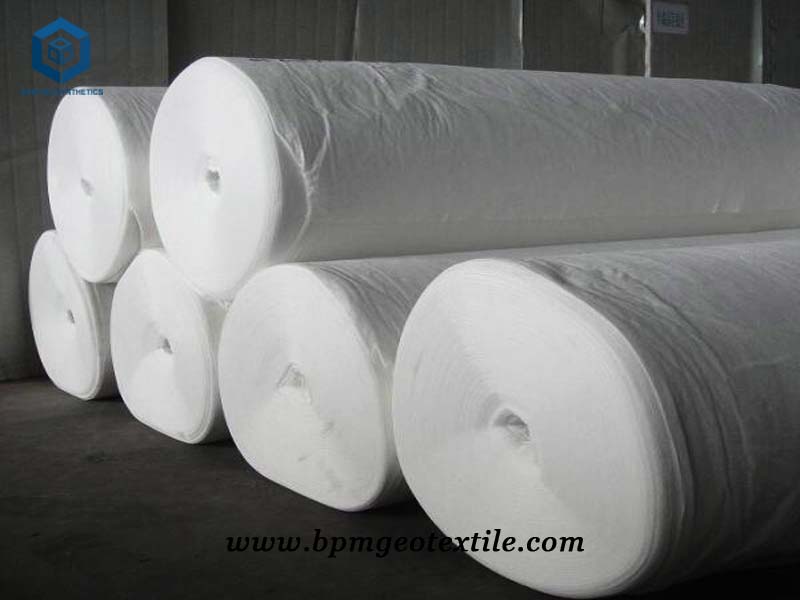

Specifications of Geotextile Underlayment Fabric for Road Construction in Thailand
- Total quantity – 100,000m2
- Each roll size – 6m×100m
- Specification–200g/m2
4.About BPM
BPM had provided many types of effective and states of the art geomembranes, geotextile and other geosynthetics to over 100 countries. Our main customers are from Australia, Hungary, New Zealand, Poland, Mexico, Ecuador, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc.
BPM is also providing professional design and installation service. OEM and ODM are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.
